Heating Systems
We offer complete installations and replacements. For a free estimate and consultation, contact Richard Weston.

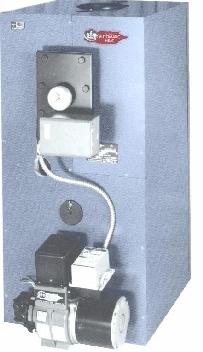

Boilers - New VT System
Oil Fired Hydronic Boilers - Improved Efficiency. Traditional Reliability and Dollar Value
A proven performer in thousand of homes over three decades, EFM's VT (Vertical Tube) design was recently re-engineered to provide even stronger efficiency without sacrificing its traditional durability and affordability.
The all new VT Series is economical to buy, operate and service. Yet performance and rugged durability outshine home heating units costing far more. These features help EFM achieve this new standard of value:
- Heavier Steel Construction. ASME standards demand heavy 3/16" steel for boiler shell and 1/4" for tube sheets.
- Turbo Ram Turbulators. Another EFM exclusive! These specially designed turbulators force more heat against firetube walls for unsurpassed heat-transfer efficiency.
- "Trombone" Design 100% Copper Hot Water Coil. EFM-designed to deliver domestic hot water...without taxing the burner or wasting fuel!
- Ceraform ceramic fibre combustion chamber.
- Beckett flame retention oil burner.
- Honeywell controls.
Standard Equipment
The EFM VT Series comes fully equipped with the following components:
- Boiler
- Flush Jacket
- Tankless hot water coil
- Ceramic fibre combustion chamber
- Theraltimeter
- Circulator
- Triple action aquastat
- High speed flame retention head oil burner with safety controls
- Boiler relief valve
- Draft regulator
- Thermostat
- All electrical components are pre-wired for easy installation
Specifications
| Model | VT700E** | VT1000** | ||||||
|---|---|---|---|---|---|---|---|---|
| Input BTUH | 138000 | 118000 | 104000 | 90000 | 228000 | 207000 | 186000 | 152000 |
| Heating Capacity BTUH | 114000 | 98000 | 88000 | 77000 | 191000 | 174000 | 158000 | 130000 |
| *Net Output BTUH | 100000 | 86000 | 77000 | 67000 | 166000 | 151000 | 137000 | 113000 |
| Burner | AFG56XN | AFG56YB | ||||||
| Nozzle Size - G.P.H. | 1.00 - 80H | 0.85 - 80H | 0.75 - 80H | 0.65 - 80H | 1.65 - 80H | 1.50 - 80H | 1.35 - 80H | 1.10 - 80H |
| Tankless Coil - G.P.M. | 5 | 5 | ||||||
| No. of Tubes | 14 | 24 | ||||||
| Smoke Outlet Dia. | 6 | 7 | ||||||
| Water Capacity - Gals. | 9 | 19 | ||||||
| Recommended Chimney Size | 8 x 8 x 15 | 8 x 8 x 15 | ||||||
| Shipping Weight | 315 | 435 | ||||||
*
Before purchasing this appliance, read important energy cost and efficiency information available from your retailer.
STILL MADE WITH PRIDE IN AMERICA
In an era when more and more home heating units or their components are made by foreign manufacturers, EFM's VT Series boilers are still made with American quality and pride. Just as EFM products have been for over 75 years.
Furnaces - Bard Oil Furnaces
Bring Quality, Efficiency, and Comfort to your home.
Features
- Pyrolite Ceramic Fiber Combustion Chamber
- Burner/Chamber Mounting System
- Beckette AFG Burner System
- Clean Cut Oil Pump
- Electronic Solid State Ignitor
- Beckette (Honeywell) R7184B Primary Control
- Heavy 14 Guage Steel Heat Exchanger
- Multi-Speed Direct Drive Blower Assembly
- Blower Door Safety Interlock Switch
- A/C Ready with 40VA Transformer/Relay
- UL Listed
- GAMA Certified
Bard Quality
Since 1914 Bard has manufactured heating and cooling products. Our company has grown in hundreds of ways, but some things never change. Bard's commitment to quality is one of them. That EXTRA concern for quality is what makes Bard one of America's leading manufacturers of heating and cooling products today. Bard is the leader in design excellence and innovative features. The Bard oil furnace line offers you the latest technology for Hi-Boy, Lo-Boy, and Counterflow oil furnace applications.
Under ISO9002 standards, only the finest materials and workmanship go into our products. All Components are carefully tested during the production process. After assembly each furnace is run tested before packaging.
The Bard & Beckett Tradition
Installing a Bard oil furnace means you have a product with years of design and manufacturing expertise no other manufacture can match. With the added benefits of the Beckett AFG Flame Retention Burner and the Beckett Clean Cut Oil Pump System you have a furnace that exceeds the industry standard.
Worry Free
Bard has always been dedicated to providing systems that are reliable and efficient. The Ceramic Fiber Combustion Chamber provides quick heat-up and quiet operation. The Bard oil furnace follows the tradition of safety, quiteness, and cleanliness. Features like the Blower Door Safety Interlock Switch prevent operation inspection and maintenance.
Easy to Maintain & Service
Bard Oil Furnace and the Beckett Burner are backed by a wide network of parts and service representations. Innovative service features include the advanced design Combustion Chamber/Burner Mounting System that slides out for easy removal and service while ensuing burner alignment. Plug-in Connections result in easy maintenance and service. Bard-built cabinets features a baked-on polyester enamel for a hard,durable finish that will resist rusting, cracking or peeling.
Bard Warranty Plus Program
Drawing from years of testing and innovation, our engineers have combined maximum perfomance and reliability into one terrific oil furnance. Each Bard oil furnace comes complete with a limited lifetime warranty on the exchanger and a five-year parts warranty. Contact your Bard dealer for details.
